Belden 29505T 6 AWG 3 Conductor 7x19x27 Stranding 1000V Variable Frequency Drives Cable

Belden 29505T 6 AWG 3 Conductor Stranding Variable Frequency Drives ★ Satisfaction garantie ou remboursement ★ Garantie de 2 ans incluse → Procédez au règlement

[pdf] [/pdf]

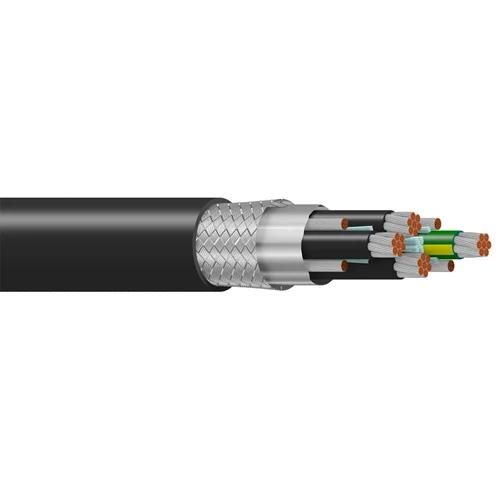

Belden 29505T 6 AWG 3 Conductor 7x19x27 Stranding 1000V Variable Frequency Drives Cable
:
Belden 300% Ground Flexible VFD, 3 Conductor 6AWG (7x19x27) Tinned Copper, XLPE Insulation M4 Color Code+PVC Protégé du froid/chaud Ground, Overall Beldfoil+Tinned Copper Braid(85%) Shield w/4-12AWG Tinned Copper Drains, Black LSZH Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Polyvalent Motor Supply Cable WTTC SUN RES DIR BUR.
Insulation:
Element: Conductor(s):-
Material: XLPE – Cross-Linked Polyethylene (Thermoset)
Nom. Thickness: 0.062 in (1.6 mm)
Element: Ground:-
Material: PVC – Polyvinyl Chloride
Nom. Thickness: 0.062 in (1.6 mm)
Outer Shield:
• Shield Type Tape, Tri-Laminate (Alum+Poly+Alum) Material, Coverage 100% • Shield Type Br
