Belden 9155 20 AWG 1 Pair 18 AWG 2 Conductor Tinned Rouge cuivré 300V Audio and Instrumentation Cable Commandez au moins 10 pièce

Belden 20 AWG 1 Pair 18 AWG 2 Conductor Tinned ★ Garantie de remboursement de 30 jours ★ Matériaux de qualité supérieure → Expérience d’achat optimisée

[pdf] [/pdf]

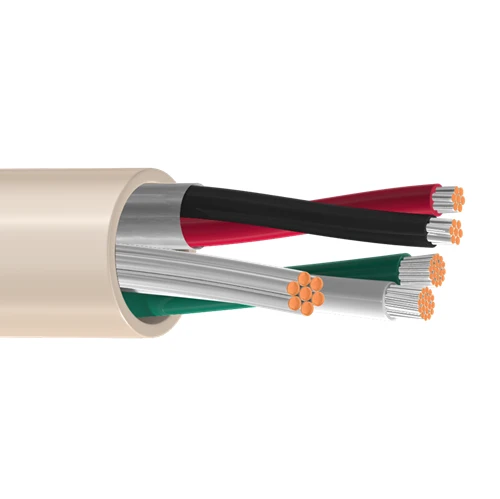

Belden 9155 20 AWG 1 Pair 18 AWG 2 Conductor Tinned Copper 300V Audio and Instrumentation Cable
:
1 Pair 20 AWG stranded (7×28), Beldfoil shield 2 conductors 18 AWG stranded (19×30) TC conductors, polyethylene insulation, 22 AWG stranded TC drain wire, CM VINYLE jacket.
Insulation:
Element: Pair(s):- • Material: PE – Polyethylene • Nom. Thickness: 0.021 in (0.53 mm) • Nom. Insulation Diameter: 0.078 in (2.0 mm)
Element: Conductor(s):- • Material: PE – Polyethylene • Nom. Thickness: 0.021 in (0.53 mm) • Nom. Insulation Diameter: 0.085 in (2.2 mm)
Inner Shield:
Element: Pair(s):-
• Shield Type: Tape • Material: Bi-Laminate (Alum+Poly) • Coverage: 100% • Drainwire Type: 22 AWG (7×30) TC • The 20 AWG pair has individual B
